Introduction

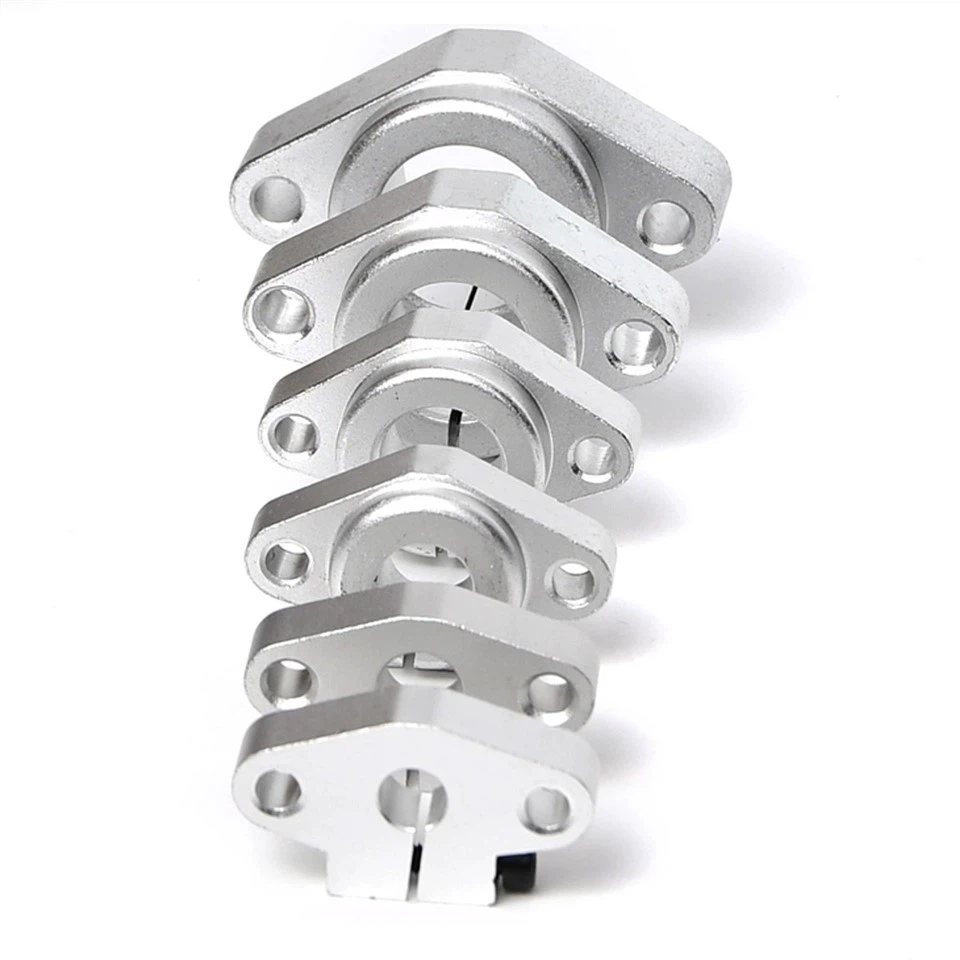

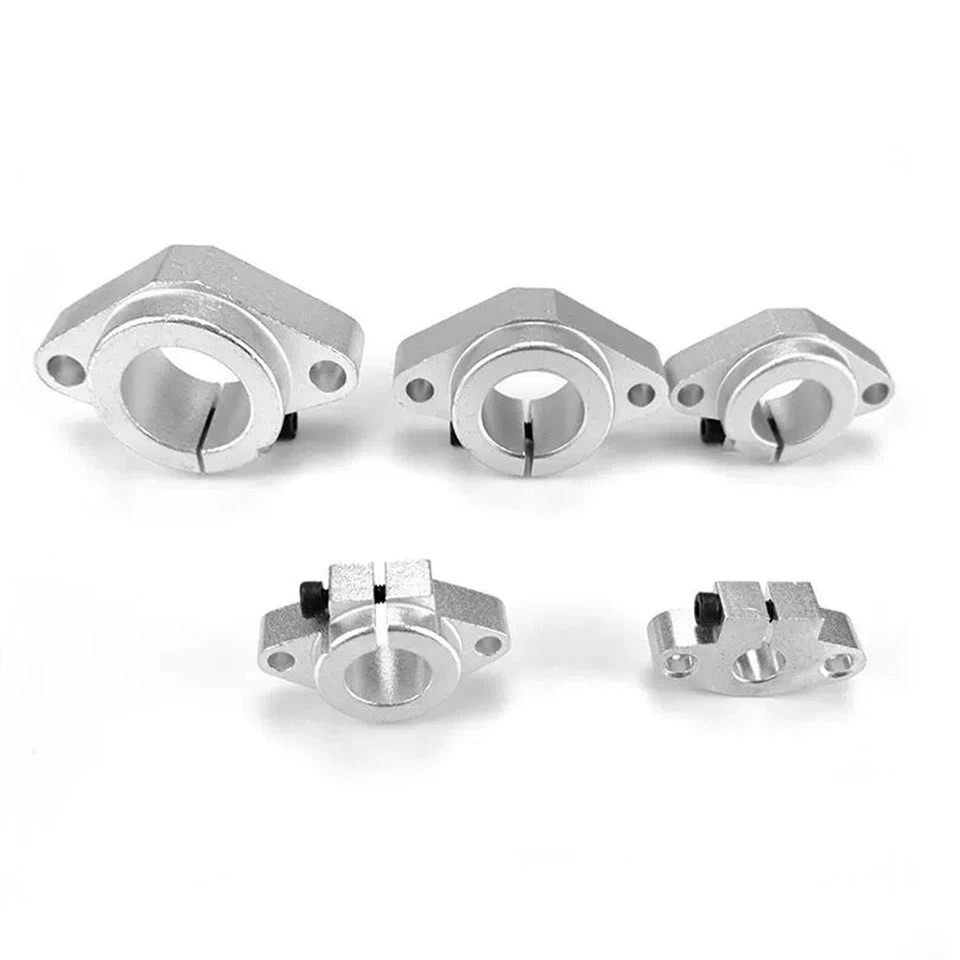

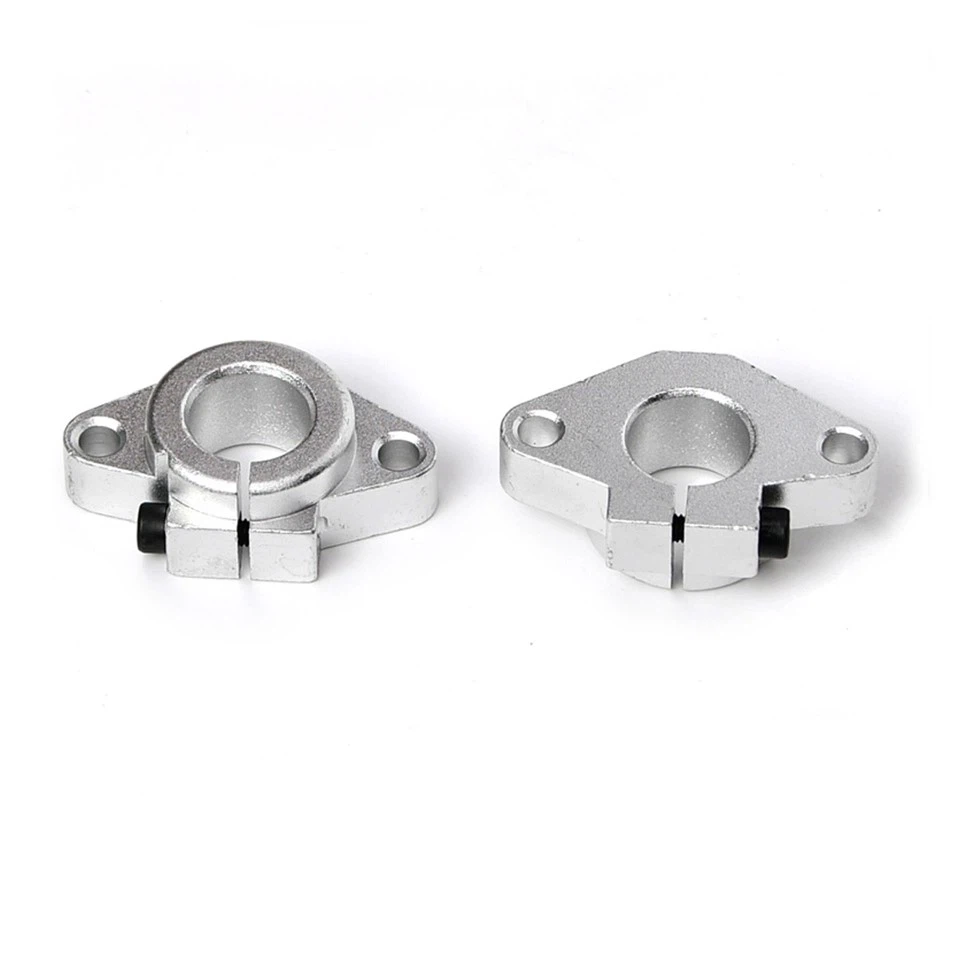

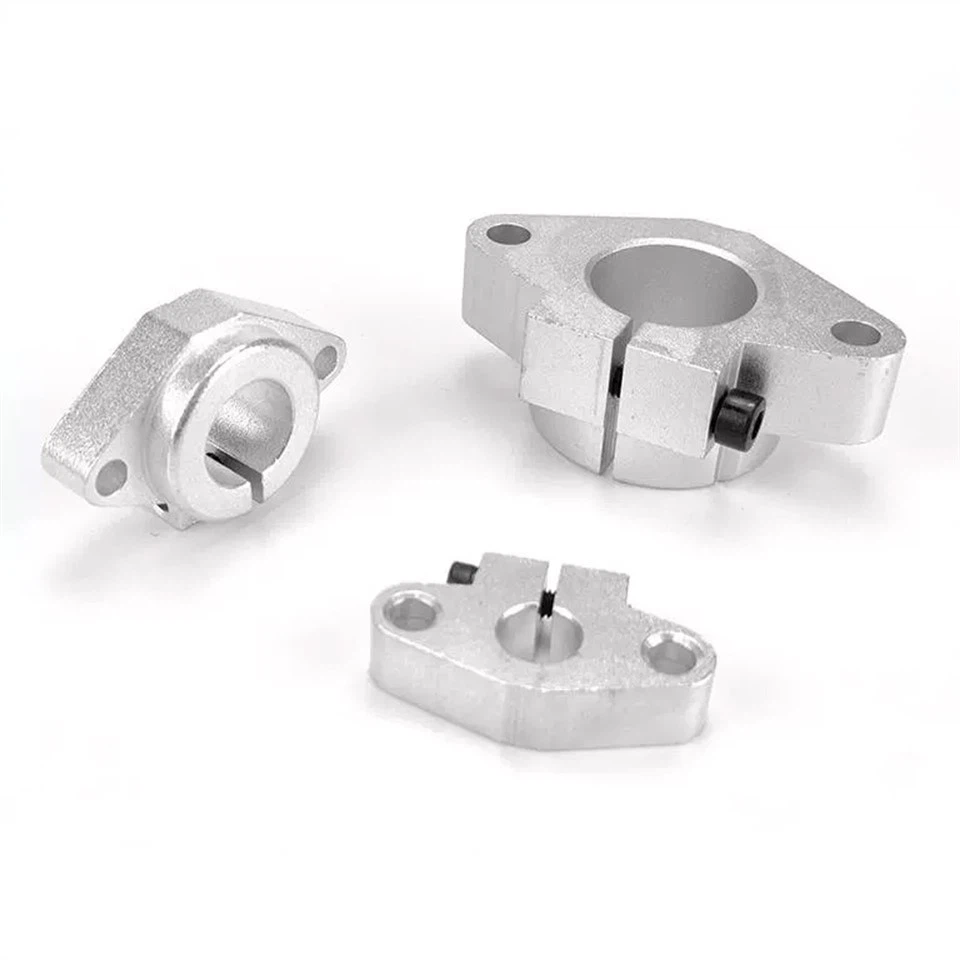

The SHF shaft support is a precision mechanical component designed for linear shaft fixation. Crafted from lightweight aluminum alloy, specifically 6063 aluminum, or stainless steel, it boasts high levels of precision, rigidity, and vibration resistance. The innovative slotted shaft mounting design facilitates swift installation, rendering it ideal for automation production lines, CNC machines, printing equipment, medical devices, and various other sectors, significantly boosting equipment stability and operational precision.
product highlights
High Precision & Stability
Nylon resin retainer reduces friction and noise between steel balls and tracks, ensuring motion accuracy (±0.02mm).
Shell undergoes quenching heat treatment with hardness HRC45-50, preventing deformation over long-term use.
Easy Installation & Maintenance
Slotted shaft mounting allows for quick bolt fastening, improving installation efficiency by 50%.
Lubrication-free design (pre-installed lithium-based grease) reduces maintenance costs by 30%.
Wide Applicability
Supports shaft diameters φ8-φ60mm, compatible with various linear shaft specifications.
Operating temperature range: -40℃ to +120℃, suitable for extreme environments.
who choose us?
From automotive factories to wind farms, aerospace labs to industrial plants-global businesses trust our bearings.
Why?
Proven reliability: Reduces downtime, boosts efficiency.
Tailored solutions: Customized to your industry's needs.
Trusted partnerships: On-time delivery and consistent quality, backed by clients in Europe, Asia, and the Americas.
We're the choice for those who value performance that matters.
one-stop solution
professional team
high quality

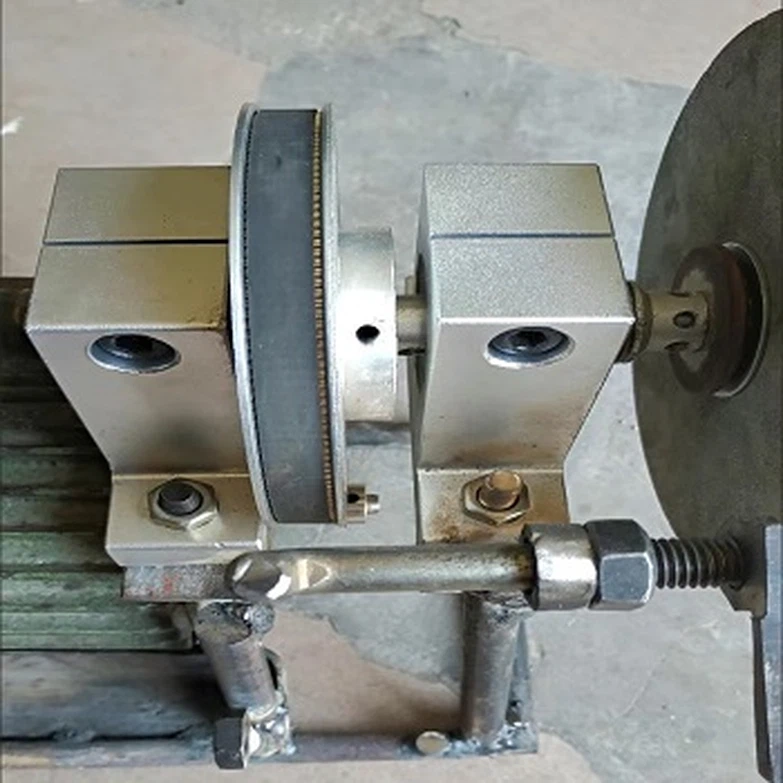

Application Scenarios
Our Service
LiShui HengYuan bearing CO.,LTD.
01
Pre-sale service
We offer non-standard customization and can send samples for free. The postage needs to be paid by your side.
02
Installation service
Before Installation: Clean the mounting surface and check the compatibility between shaft diameter and support seat inner diameter.
Installation Steps:
Slide the support seat onto the shaft and align the mounting holes through the slot.
Fasten with M5-M10 bolts (recommended torque: 8-12N·m) to ensure the support seat is perpendicular to the base.
03
After-sales service
Warranty Policy: 1-year warranty (excluding human damage) and lifetime technical support.
Customization: Support non-standard sizes, materials (e.g., 304 stainless steel), and surface treatments (e.g., blackening, nickel plating).
Quick Response: 7×24-hour customer service online, technical issues resolved within 48 hours.
FAQ
Q: Can the SHF shaft support be used for vertical installation?
A: Horizontal installation is recommended for optimal load capacity. Vertical installation requires additional reinforcement.
Q: How to choose the right model?
A: Select based on shaft diameter, load requirements, and installation space. Refer to the technical parameters table or contact customer service.
