Introduction

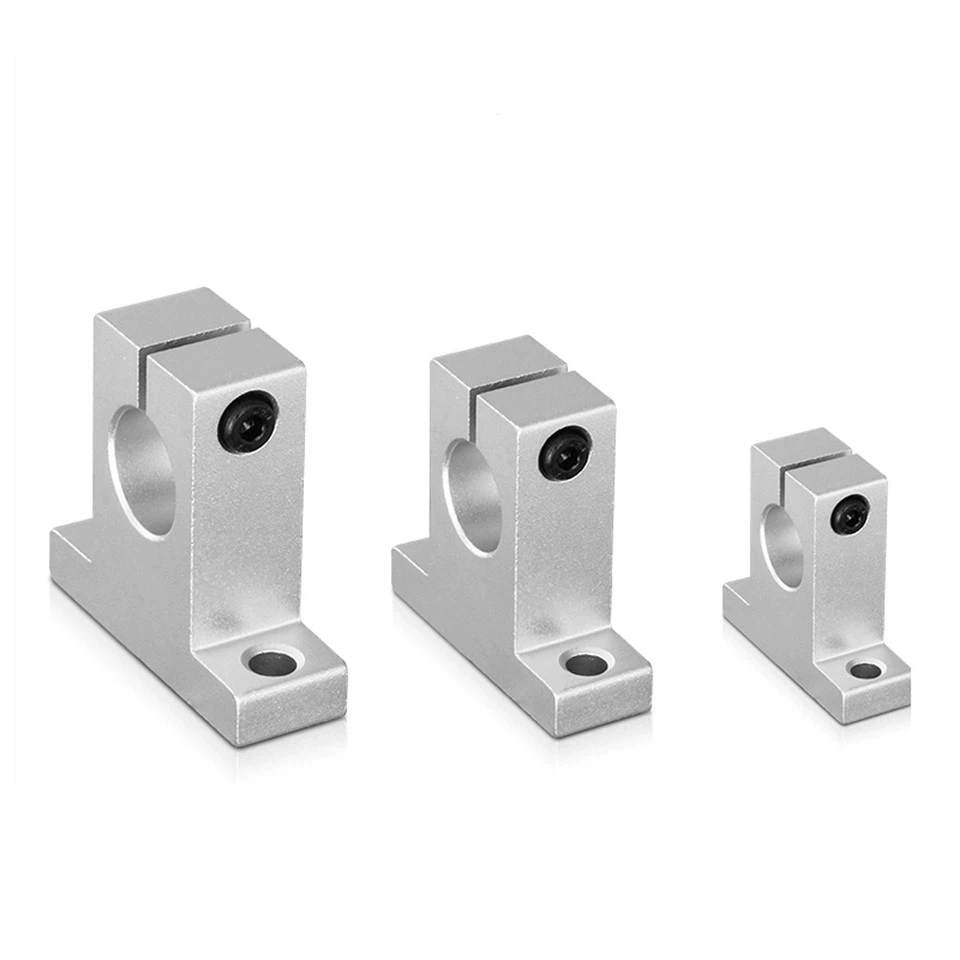

Precision Shaft brackets are tailored for optical experiments, laser apparatus, and precision instruments, providing robust support for optical axes and enabling fine adjustments. Crafted from superior aluminum alloy and stainless steel, they strike a balance between being lightweight and possessing high stiffness, thereby ensuring enduring durability.
product highlights
1. Precision Adjustment
Supports angular and linear adjustments for easy optical alignment. The knob design ensures smooth operation, even for beginners.
2. Sturdy
Build Crafted from premium aluminum alloy and stainless steel, withstanding everyday vibrations and shocks. A reinforced base guarantees stability.
3. Modular Design
Compatible with various shaft sizes, quick replacement in 5 seconds. Multiple mounting options for different equipment.
4. Tool-Free Operation
Easy installation and adjustment without extra tools. One-handed knob for quick locking and releasing.
5. Pre-Calibrated
Professionally calibrated before delivery, comes with calibration certificate for hassle-free setup.
Product Information
Application Scenarios
Installation Guide
Shaft bracket Clean the optical shaft surface to remove oil or debris.
Align the mount flange with the installation plate and secure with M4/M5 screws.
Adjust the knobs to the initial position and install optical components.
Calibrate the optical path step-by-step and lock the adjustment mechanism.
Certifications & Services
Compliant with ISO 9001 quality management system
1-year warranty included. Custom sizes and interfaces available.
FAQ
Q: Can it fit non-standard optical shafts?
A: Supports non-standard shafts (φ6-φ25mm) with custom collets (e.g., tapered/square interfaces) for special size requirements.
Q: How to clean the mount surface?
A: Wipe with alcohol pads to avoid scratches from sharp objects; for deep cleaning, use neutral detergent with a soft brush.
Q: Can it be used in humid environments?
A: Corrosion-resistant surface for short-term use in ≤90% humidity; waterproof coating is available for long-term high-humidity environments.
Q: Will accuracy decrease after long-term use?
A: Dual-bearing preload design with wear-resistant coating ensures accuracy loss ≤0.005mm/year under normal use.
