Nut Housing
Your Professional Nut Housing Supplier
Lishui Hengyuan Bearing Manufacturing Co., Ltd. was established in 2008 and is located at No. 11 Ye'ao Road, Lishui Economic Development Zone. The company’s main products include rod end spherical bearings, radial spherical bearings, linear bearings, linear guides, ball screws, needle roller bearings, and other related products. Our products have been exported for many years to Europe, America, and Southeast Asia.
Our Certificates
We have obtained ISO9001 certification and have been recognized as a national high-tech enterprise, a specialized and innovative small and medium-sized enterprise, a technology-based SME, and have received intellectual property management system certification.
Our Services
We provide technical support and can assist customers with product selection, testing, and solving various issues during experiments. In addition, we offer customized product configuration solutions tailored to your specific needs.
Production Market
Our products are exported to markets in Europe, America, and Southeast Asia. We have established long-term cooperative relationships with HAAS Automation Inc. in the USA and with Wode Group's agricultural machinery and equipment division in China.
Product Highlights
Premium Material, Excellent Performance
Crafted from 6061-T6 aluminum alloy, it combines high strength, low density, and superior corrosion resistance. Weighing only 1/3 of a steel nut socket, it significantly reduces equipment load while ensuring stable operation in high-stress environments.
Precision Machining, Perfect Fit
Manufactured by CNC precision machining, the thread accuracy reaches ISO 4H grade, with hole diameter tolerance controlled within ±0.02mm. It perfectly matches bolts and screws, eliminating loosening or thread stripping and ensuring connection reliability.
Optimized Structure, Easy Installation
The bottom features a non-slip serration design and countersunk holes to enhance friction with the installation surface and prevent rotational displacement. The standardized shape is compatible with mainstream tools, enabling quick installation and disassembly to save labor costs.
Surface Treatment, Durability Upgrade
Available with anodizing (natural/black) or conductive oxidation treatment, forming a dense protective film. It passes over 500 hours of salt spray testing, suitable for humid, dusty, or acid-alkali environments, extending service life.
Product Information

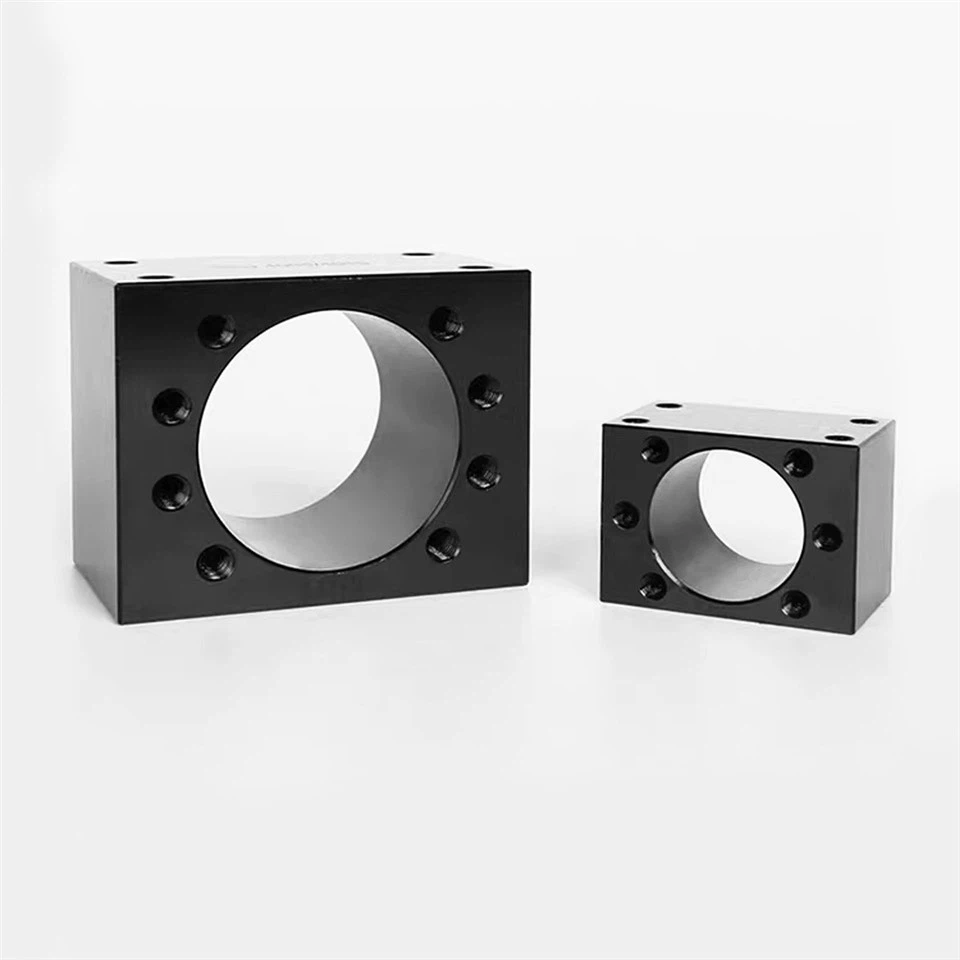

Details for Aluminum Nut Housing
|
Product name |
Aluminum Nut Housing, Ball Screw Nut Holder, Ball Screw Nut Bracket |
|
Material |
Aluminum Alloy |
|
Model no |
DSG16H, 1616, 20H, 2020, 25H, 2525, 32H, 40H, 50H |
|
Nut type |
Single, double |
|
Precision |
High precision |
|
Ball screw |
SFU, DFU |
|
Process |
Rolled thread |
|
Service |
OEM, customization |
Dimensions
Housing 35 x 35 x 28 mm T8 lead screw nut housing bracket fits for T8 screw brass nut housing.
Specification
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Material
Aluminum alloy
Screw size
M3/M4
Inner Hole Diameter
10mm
Overall Size
35 x 35 x 28 mm
Apply to
T8 screw copper nut
Features
- Suitable for housing the T8 lead screw nut.
- T8 lead screw nut housing bracket for 3D printing.
- Made of aluminum alloy material, sturdy and durable, long time to use.
- Make the lead screw more stable without agitation.
- Easy to install.
Package Included:
- 1 x T8 Screw Nut Bracket (T8 screw and nut are not included)
FAQ
As one of the leading nut housing manufacturers in China, we warmly welcome you to wholesale cheap nut housing made in China here from our factory. For customized service, contact us now.
