Introduction

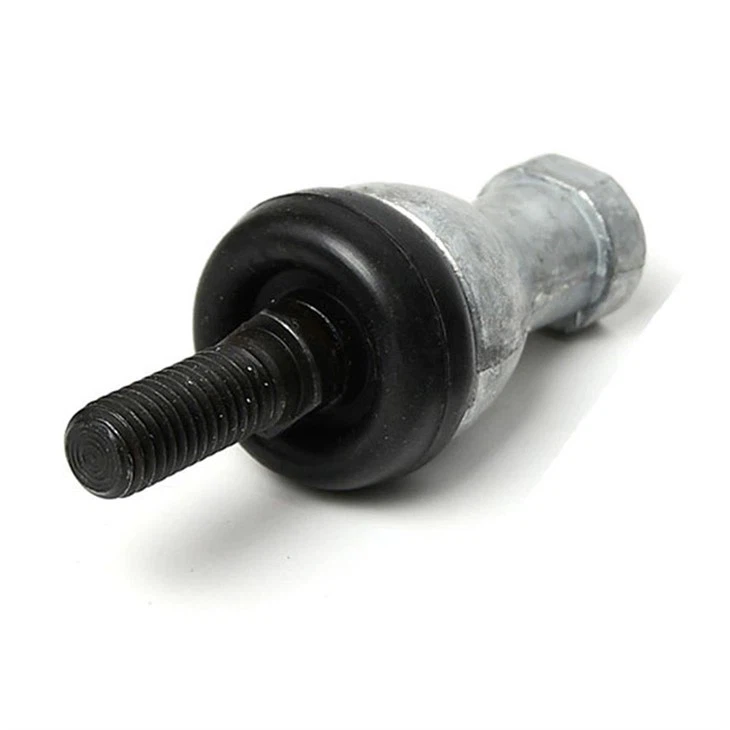

Spherical joint bearing is a precision mechanical component designed to withstand radial, axial, or combined loads. Its spherical contact structure allows flexible rotation within a certain angular range, making it suitable for high-precision, high-impact, or complex working conditions. Our products are manufactured using advanced international processes, with strict control over materials and precision to ensure exceptional reliability and durability.
product highlights
Spherical joint bearing High-precision CNC grinding machines are used to process the spherical surface and raceway, with dimensional tolerances controlled within ±0.001mm and surface roughness Ra≤0.2μm, ensuring uniform fit clearance and smooth rotation.
The main body is made of GCr15 bearing steel (hardness HRC58-62), and the spherical surface is carburized and quenched, combined with a PTFE self-lubricating pad to significantly reduce the friction coefficient and extend service life by over 30%.
The spherical radius and contact angle are optimized for design, with a maximum radial load of up to 500kN (model-dependent), effectively absorbing vibrations and handling frequent start-stop or impact load conditions.
Allows a swing angle of ±15° (up to ±30° for some models), meeting the multi-angle movement requirements of complex mechanical structures such as robotic arms and suspension systems.

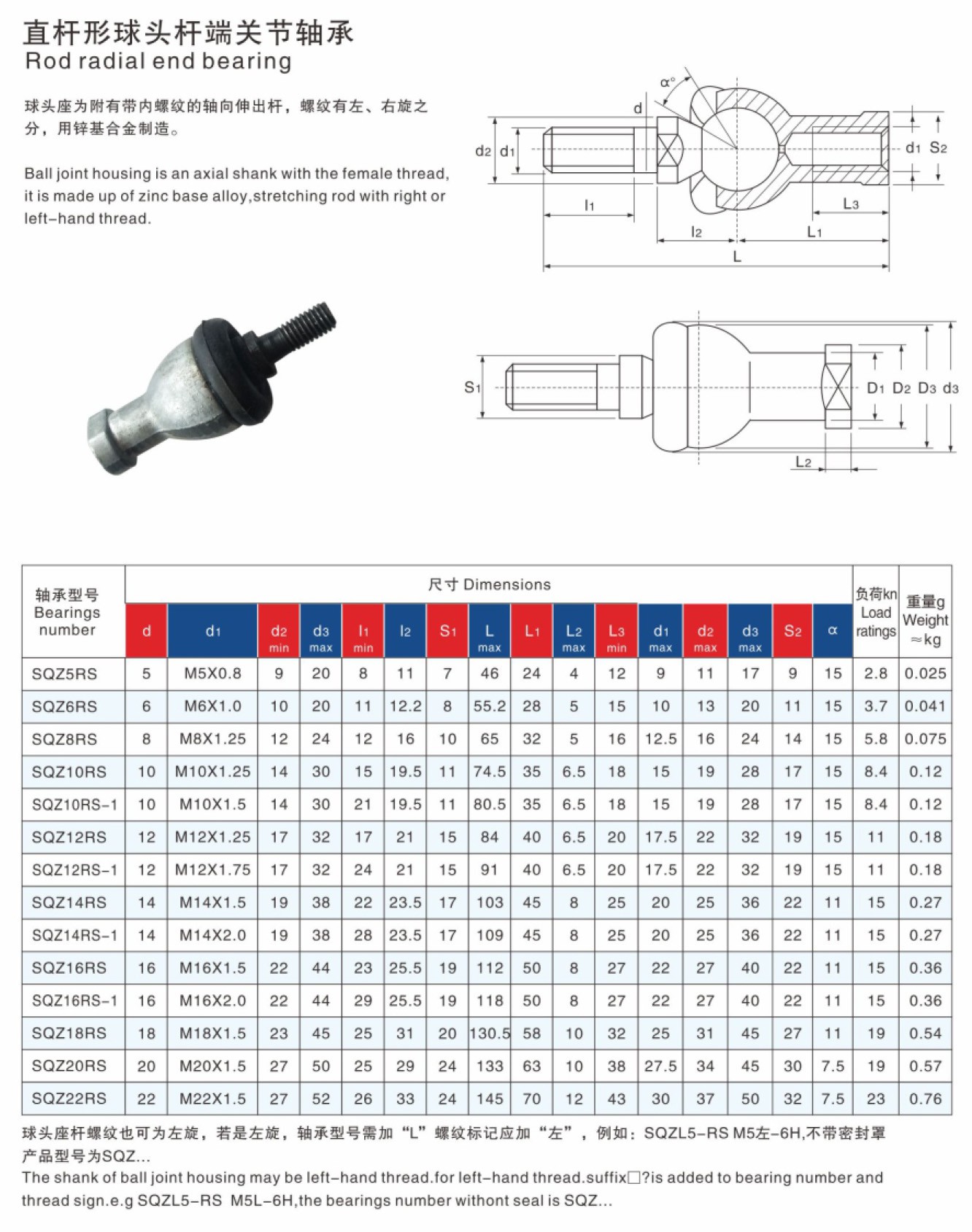

Product Model Parameters Table
Application Scenarios
Mechanical Lathe Equipment
Why Choose Us?
1. 15 Years of Experience: Focused on industrial bearing R&D, serving over 500 domestic and foreign customers.
2. Full Chain Control: Independent production from steel smelting to precision machining, strictly controlling costs and quality.
3. Customization Capability: One-stop customization solutions including drawing optimization, material selection, and surface treatment.
Installation & Maintenance
1. Installation:
Clean shafts and housings to avoid impurities.
Heat bearings to 80~100℃ (optional) and press-fit evenly using a press.
Avoid direct impact and ensure precision fit (tolerance H7/k6).
2. Maintenance:
No lubrication needed; check installation clearance regularly.
Avoid prolonged overload or impact loads.
FAQ
Q: How do I select the right spherical plain bearing model?
A：Selection is based on:
Bore size (matching the installation shaft, standard 20-300mm, non-standard customization available);
Load type and magnitude (radial, axial, or combined load, refer to the maximum load parameters of the model);
Swing angle requirement (e.g., ±15° or ±30° rotation range for mechanical structures);
Working environment (galvanized/Dacromet coating for wet/corrosive environments, special materials for high-temperature conditions).
Contact us with drawings or working parameters for professional selection assistance.
