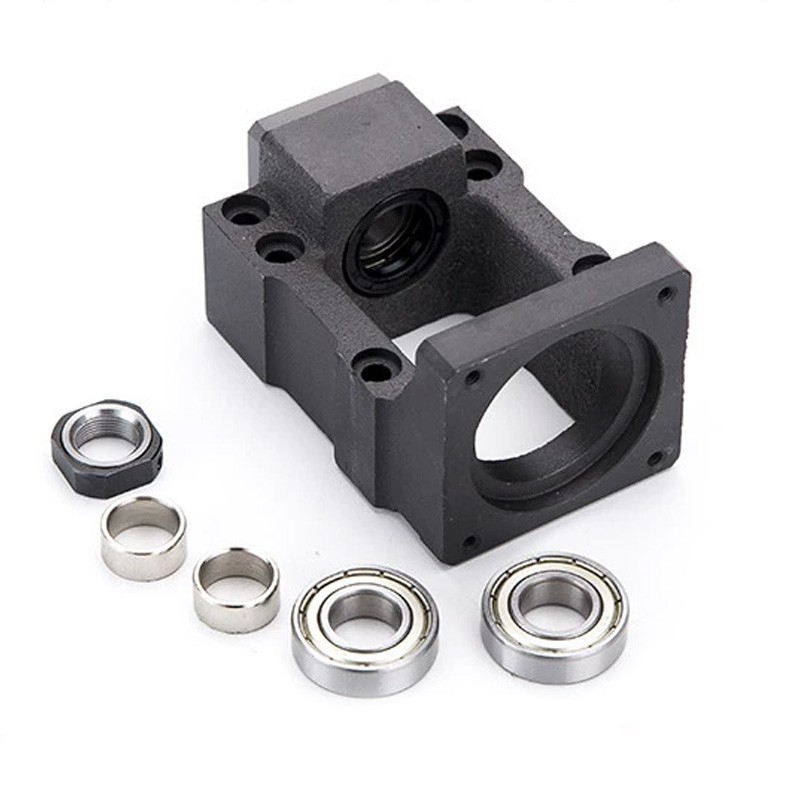

Servo Motor Bracket
Motor Bracket made from steel. It has a 60x60 flange that is compatible with most 60x60 Flanged ServoMotors or Steppermotors. The bracket has datum surface on the bottom, that also has two 6mm dowel pin holes. These can be used to get the perfect alignment when placing back on a machine frame. Also the alignment between bearing and flange is within 0,02mm since the machining is done in one operation. When building a CNC machine or other special machine, this is an interesting part to have, since it saves a lot of time, that is normally spent on making a bracket. This bearingblock is compatible with the BF12 floating bearing block, (same height from datum surface). Most commonly the bearing block is used in combination with 20mm ballscrews.
Product Information
|
Processing |
Stamping;Laser Cutting;EDM;Bending;Welding |
|
Raw Material |
Carbon Steel, Alloy Steel, Stainless Steel,Brass |
|
Surface Finish |
Anodized, Oxide, Plating, Brushing, Polishing, Blackened, Powder coating, Sandblasting, Laser engraving Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated,rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc |
|
Drawing Formation |
PDF, CAD/DWG/DXF, IGS/STP etc. |
|
Inspection Equipment |
CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin gauge, Caliper gauge, Pass meter, Pass meter etc. |
Component features
- Compatible with 60x60 Flange size servo motors (DELTA)
- Steel Housing
- High Quality Product Made in TAIWAN
- 4 x M5x20 DIN912 bolts included for mounting the servomotor
- 4 x M4x12 DIN 912 bolts included for mounting the FK12 fixed bearing block
- FK Fixed Bearing not included (don't forget to order it! FK12)
- Mosten often used with HIWIN 20mm ballscrews
Types of Servo Motor Bracket
Servo motor brackets are essential components in any system that utilizes a servo motor. These apparatuses provide stable mounted points for the motor and also ensure that the applied actions are accurately and precisely transmitted to the driven system. Various types of servo motor brackets are designed for other applications, including horizontal systems, inverted systems, and configurations requiring unique orthogonal joints.
Vertical Mounting Brackets
The vertical mount bracket is designed to be fixed in a vertical position, and thus, it is suitable for configurations that require the motor to be oriented vertically. These are widely employed in systems that need linear movement in a vertical direction, such as lifting and lowering systems. These brackets are manufactured from premium-grade materials to provide reliable stability and an extended service life.
Horizontal Mounting Brackets
Conversely, horizontal motor brackets are best suited for vertical mounting, where the motor should be oriented horizontally. These brackets are employed in systems requiring linear movement in a horizontal direction, such as conveyor belts or sliding mechanisms. Solid aluminum and, at times, steel are the most common materials applied in their production. Users will find these features critical for aligning the motor with the output components, minimizing wear and maintaining operational efficiency.
Inverted Brackets
Specialized motor brackets for inverted mounting systems are designed to support motors mounted upside down. These brackets are primarily used in applications requiring the motor to be positioned from an inverted perspective while retaining correct operational alignment. For instance, during space restrictions, inverted brackets allow for flexibility in motor positioning without compromising functionality. The robust design of these supports also ensures that even in critical motion instances, stability and minimal vibration are guaranteed.
Angular or Offset Brackets
Angular or offset brackets are specifically designed to mount servo motors at an angle to the drive element, usually at perpendicular angles. Such brackets are important in systems where space limitations must be addressed or where specific transmission orientations are required. These are frequently used in complex drive mechanisms, such as robotic arms or multi-axis systems.
Commercial Value and Uses of Servo Motor Brackets
Industry Applications
Manufacturing: In servo motor systems, bracket selection is vital for ensuring optimal performance in all dynamics. Therefore, based on operational variables such as load, motor size, and system orientation, the correct motor bracket defines the role of the system.
Robotics: Precision is critical in the robotics sector, especially when designing intricate movements. The types of servo motor brackets used here are carefully designed to enhance the performance of the robot's joints and limbs.
Automated Systems: Mounting plays an important role in automation. In these systems, motor brackets facilitate the drive of conveyors, pumps, and other devices by keeping motors in the proper alignment.
Aerospace: Due to the requirement for reliability and lightweight construction in the aerospace industry, premium materials in the construction of servo motor brackets employ advanced technology to enhance weight without sacrificing strength.
Health Sector: The healthcare space demands precision and dependability. Thus, the servo motor brackets offer the needed stability and performance in medical apparatuses, enhancing their functionality.
Financial Benefits
Precision Alignment: One of the major advantages of a servo motor bracket is precise alignment, as it protects the motor from excessive vibration and misalignment.
Enhanced Durability: A properly mounted motor experiences reduced wear and tear. Just like a stable one, the use of quality materials ensures extended life, thus saving on maintenance costs.
Flexibility: The variety of brackets allows users to mount motors in configurations that best relate to their needs. This flexibility will enable the user to avoid conventional designs, especially when spacing becomes a problem.
How to Choose Servo Motor Bracket
The following should be considered when choosing a servo motor bracket:
Material: Servo motor brackets are made of various materials, including steel, aluminum, and plastics. Steel brackets, for example, exhibit great strength and support heavy loads or high-stress environments, while aluminum is highly lightweight and corrosion-resistant and is great for applications where weight factors in but still has to maintain good strength. Plastics are lightweight and non-magnetic; hence, they are suitable for applications where electrical conductivity is a factor.
Shape and Size: The size of the servo motor bracket should be compatible with the motor and mount assembly area. It helps to reduce the tendency of the system by using the Correct bracket shape to avoid excessive bending moment. A large thermal mass can insulate heat better, whereas a compact mass can easily dissipate heat.
Type of Mounting: Servo motor brackets are always furnished with a particular mounting style, such as a threaded hole or stud. Such styling must correlate to the motor and drive system to enable easy assembly without tension. A motor and drive system can relate through the same mounting hardware.
Load Capacity: All motor brackets are designed with certain load capacities in mind. This means that the load should not be higher than the bracket can bear, as that can result in failure or excessive wear.
Adjustment Possibilities: Some servo motor brackets have adjustments or alignment features that can increase or decrease the motor's position to allow proper alignment with the drive system. This may also be important in applications where precision is key.
Maintenance of Servo Motor Bracket
Inspection
Regularly and thoroughly check the bracket for any signs of wear, tear, fatigue, or corrosion. Common spots include areas that have stress concentrations and welds.
Cleaning
Debris and dirt can easily get into various manufactured parts of a machine system, affecting the working state. The presence of dirt could even lead to overheating. One should always wipe and wash the bracket weekly to prevent such instances.
Tightening
Periodic running checks should be done to make sure that all fasteners are doing their job correctly – This means they should all be tight and secure. In the event that any bolts or screws end up becoming loose, that could cause the motor to vibrate, which can lead to wear and tear.
Lubrication
Though brackets do not have many moving parts, they may in some way come in contact with such parts that require lubrication, such as the motor shaft. Regular lubrication helps to reduce friction and keeps the motor cool.
Alignment Check
Brackets are manufactured in a way that they remain aligned with the motor and associated machinery elements. Any misalignment ensures that extra forces are created and thus checks the wear from motor vibrations.
FAQ
As one of the leading motor bracket manufacturers in China, we warmly welcome you to wholesale cheap motor bracket made in China here from our factory. For customized service, contact us now.
