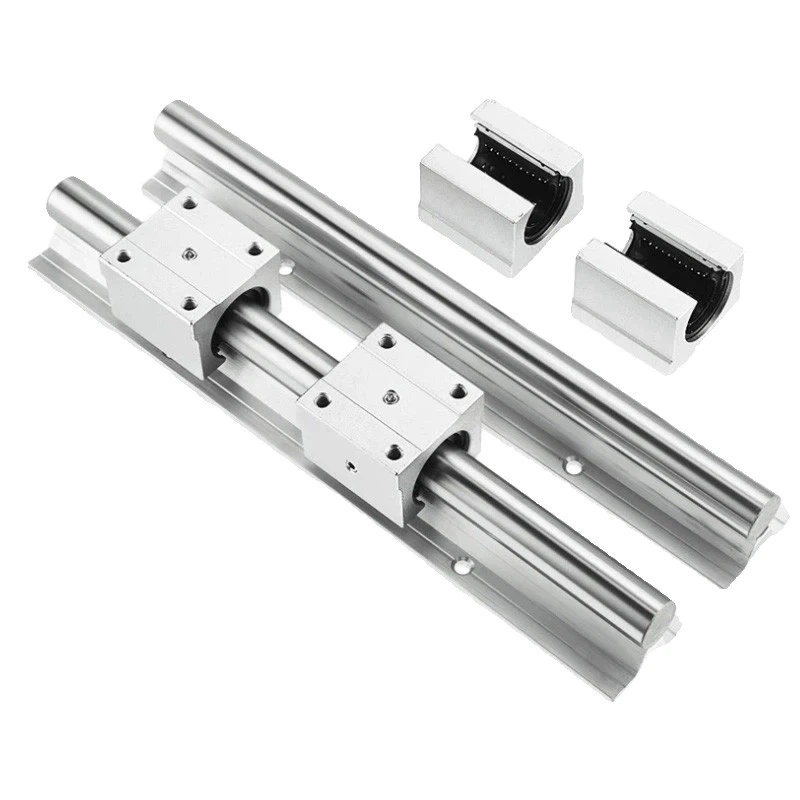

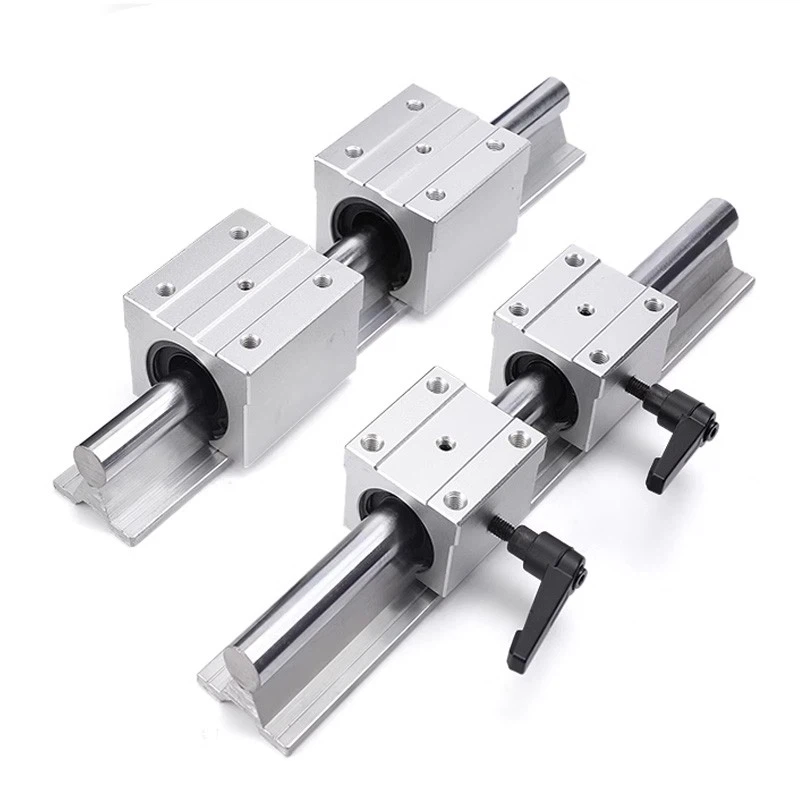

The Sbr Linear Guide rail embodies a precise linear motion configuration employing the rolling friction concept. It consists of a sturdy aluminum alloy support structure and a toughened, chrome-plated smooth shaft, operating with great efficiency. By allowing the uninterrupted rolling of steel balls between the glide and the guide rail, it aids in achieving high-precision linear movement of the load platform. Boasting a friction coefficient that is just 1/50 of traditional sliding guide rails, it exhibits exceptionally low initial friction, thereby significantly improving the positioning precision and operational effectiveness of the equipment.
product highlights
Ultra-high precision, accurate positioning
Rolling friction design:The point contact structure between the steel balls and the guide rail effectively reduces the friction resistance, and the positioning accuracy can reach ±0.01mm.Dedicated
Low backlash characteristics: The difference between dynamic and static friction forces approaches zero, avoiding the "slipping" phenomenon and ensuring the stability of the repeated positioning accuracy.
Long service life and high reliability
High-quality Materials: The guide rail is made of 45# steel or GCr15 bearing steel. The surface hardness after quenching reaches HRC58 - 62°, the wear-resistant layer thickness is 0.8 - 3mm, and the anti-fatigue life is increased by more than 3 times
Impact-resistant Structure: The core part has a low hardness (HRC30 - 40°), which can absorb vibration impacts and reduce equipment resonance.
Flexibly adaptable, easy to install and maintain
Modular Design: Supports multi-slider combinations and cutting to any length (up to 6 meters), adaptable to complex mechanical structures
Lubrication-free Technology: Features an internal oil storage block design, enabling 6 months of maintenance-free operation; also supports an automatic oil supply system to reduce manual intervention.
Product Information
The technical specifications of the Sbr Linear Guide manufactured by Lishui Hengyuan Bearing Manufacturing Co., Ltd.
Application Scenarios
Why Choose Us?
1. Quality Assurance
Certified to ISO 9001:2015 and CE standards, with 100% factory testing for hardness, straightness, and load capacity.
Manufactured using German imported grinding machines to ensure shaft straightness within ≤5μm/100mm.
2. Rapid Delivery
Standard models available from stock for shipment within 3–5 days; customized products delivered in 15–20 days.
3. After-Sales Guarantee
7×24-hour technical response, and lifetime maintenance at cost price.
