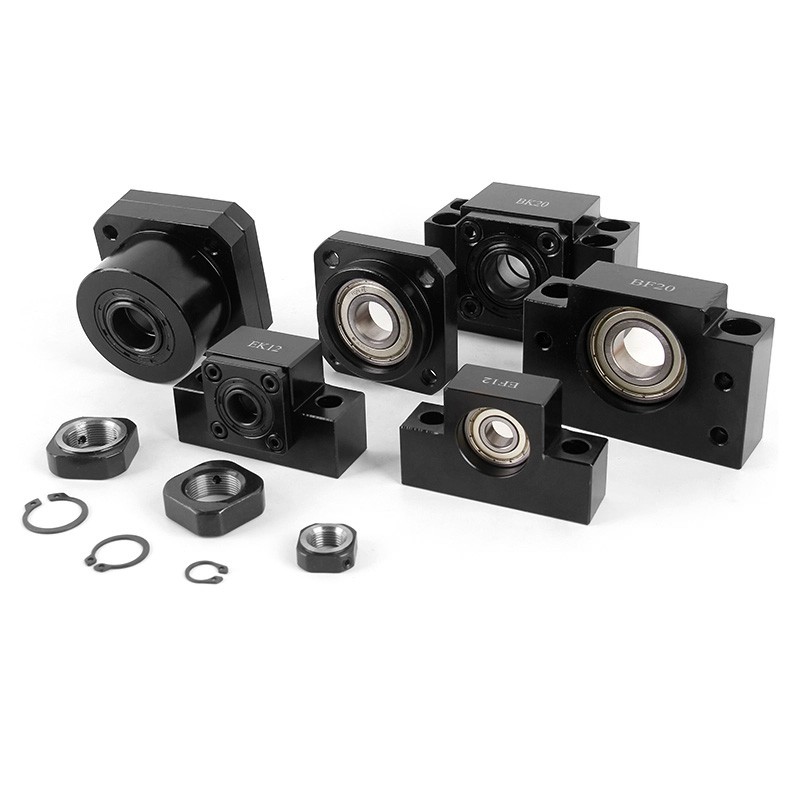

The Support Side Bearing Block for Ball Screw is a key auxiliary support component in ball screw transmission systems. Working in synergy with the fixed-end bearing block, it mainly bears the radial load of the screw, compensates for installation errors, and restricts radial movement. Through an adjustable structure or floating design, it provides flexible and stable tail support for the screw. Made of high-precision bearings and lightweight rigid housings, it is compatible with ball screws of different specifications, effectively absorbing radial vibration during transmission, relieving the load pressure on the fixed end, and significantly improving the operational stability and service life of the entire screw system. Widely used in CNC machine tools, automated linear modules, precision conveying equipment and other scenarios, it is especially suitable for long-stroke screw systems or working conditions where installation accuracy is difficult to control, and is an important auxiliary component to ensure transmission accuracy.

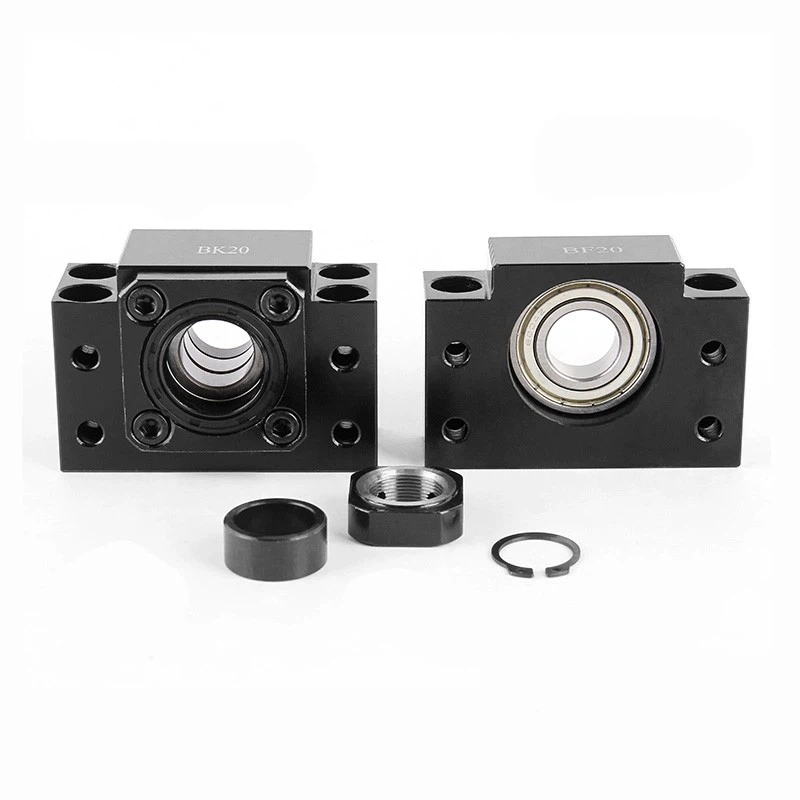

Product Parameters
Suitable for long-distance screw systems or working conditions where installation accuracy is difficult to control, it is an important auxiliary component to ensure transmission accuracy
Flexible adaptation, error compensation
Adopting a floating or micro-adjustable structure design, it can compensate for installation coaxiality errors within ±0.1mm, effectively solving the centering problem during the installation of long-stroke screws and reducing the requirements for equipment assembly accuracy.
Precise radial support, stable operation
Equipped with high-precision deep groove ball bearings or cylindrical roller bearings, the radial runout is controlled within 0.005mm, which can stably bear the radial load generated by the high-speed operation of the screw, reducing the system operating vibration amplitude by more than 40%.
Lightweight design, space-saving
The main body is made of high-strength aluminum alloy, which is 30% lighter than traditional cast iron bearing blocks. The housing structure is topologically optimized, which greatly reduces the installation space while ensuring rigidity, adapting to compact equipment layouts.
Wear-resistant and corrosion-resistant, easy maintenance
The housing surface is anodized or electrophoretic coated, with salt spray corrosion resistance up to 500 hours or more; the bearing is equipped with long-acting grease, and the sealing structure adopts a double-lip dustproof ring, so the maintenance cycle can be extended to 6-12 months under normal working conditions.
application scenarios
Automatic Machine Tools & CNC Equipment

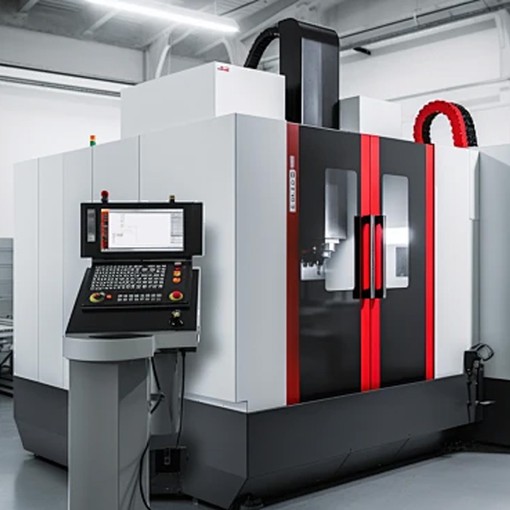

As a key support part for ball screws, the bearing housing is widely used in CNC lathes, milling machines, engraving machines and machining centers. It firmly fixes the support-end bearings, ensures good concentricity and rigidity of the screw during high-speed operation, reduces vibration and deflection, and improves feeding accuracy and machining stability for precision cutting and milling.
3D Printers & Precision Transmission Equipment
It is suitable for industrial 3D printers, dispensing machines and miniature linear slides. Featuring compact structure and reliable positioning, it matches micro and small ball screws. It ensures smooth, low-noise and accurate linear movement, and extends the service life of transmission assemblies, fully meeting the requirements of small precision automatic equipment.
Robots & Intelligent Transmission Modules

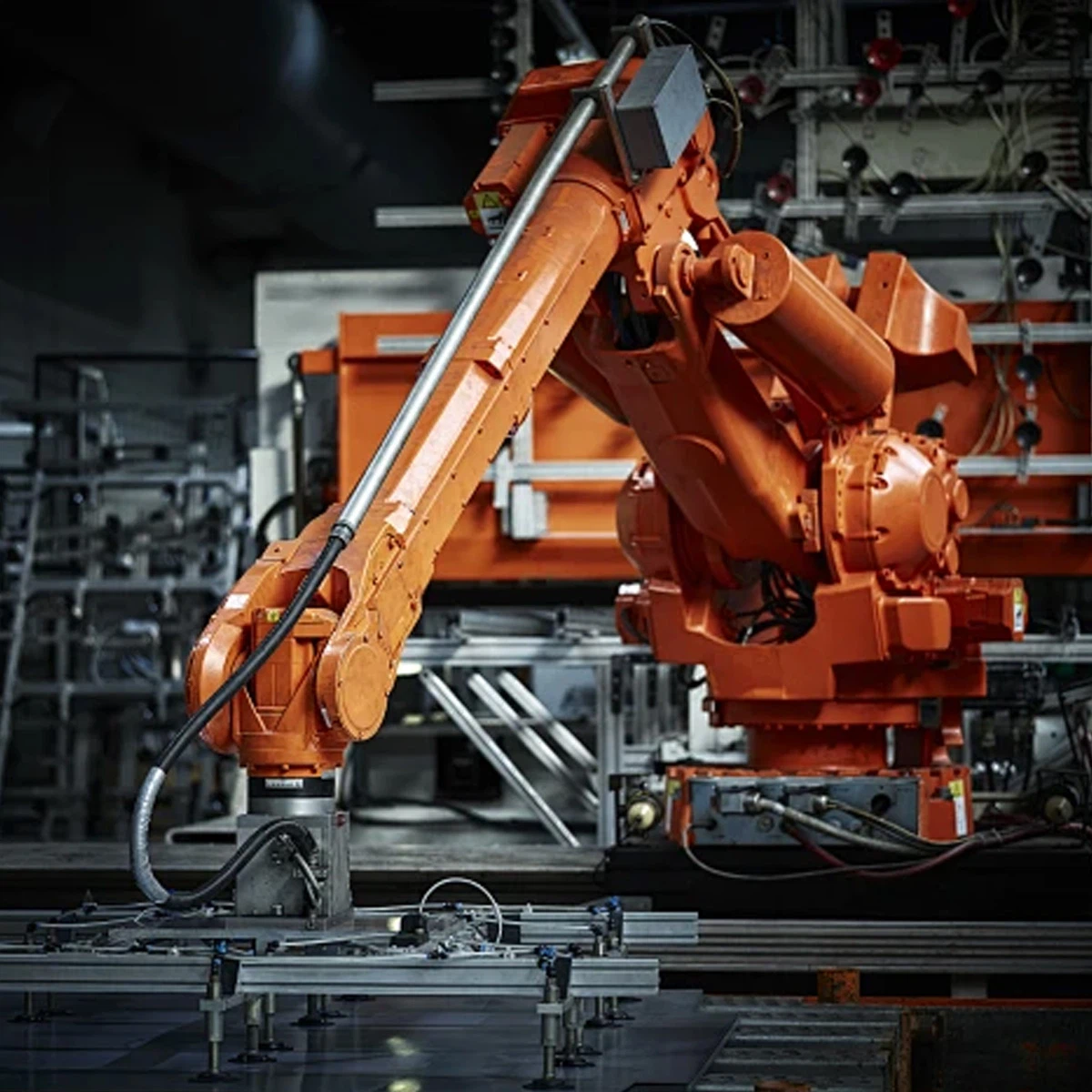

Widely applied in industrial manipulators, servo slides, automated production lines and loading/unloading robots. With high load capacity and easy installation, the bearing housing bears combined radial and axial loads. It stays stable without loosening or deformation under frequent reciprocating motion, enabling precise movement and quick response of intelligent equipment.
Selection & Installation
1
Selection points
Select the model according to the ball screw diameter, radial load, rotating speed and installation space. Floating bearing blocks are preferred for long-stroke (>2000mm) screws; deep groove ball bearing configurations are recommended for high-speed (>3000rpm) scenarios; cylindrical roller bearings are suitable for heavy-load scenarios.
2
nstallation notes
The flatness of the mounting surface should be ≤0.03mm/m, and the radial gap between the bearing block and the screw shaft end should be reserved 0.02-0.05mm; adjustable bearing blocks need to be fine-tuned to a non-sticking state after installation, and axial preload is prohibited for floating bearing blocks.
why choose us
Here are the services we can provide:
Customized Services To Meet Your Needs
We understand that the demands for industrial components vary greatly across different industries. Whether it involves non-standard dimensions, specific material requirements, or personalized surface treatments, our professional team can tailor exclusive solutions for you. We ensure our products integrate perfectly with your equipment and specific operating conditions.
after-sale service
Should you encounter any issues with the received products regarding dimensions or performance, please do not hesitate to contact us. We guarantee that upon verification, we will re-manufacture the products that meet your requirements free of charge, with no additional costs, to ensure the smooth progress of your project.
Packaging and Transportation Services
Professional customized packaging for bearings, reinforced for shockproof and collision resistance.
Stable full-process logistics delivery, ensuring intact products delivered straight to customers.
Product Delivery Date
Sample delivery cycle is 4-7 working days, and bulk order delivery cycle is 10-18 working days. It supports international trade terms such as EXW, FOB, and CIF, and provides material reports and precision inspection certificates
Hot Tags: Support Side Bearing Block for Ball Screw, China Support Side Bearing Block for Ball Screw manufacturers, factory, bk12 bearing block, bk12 ball screw, bk12 bf12, Lead Screw End Bearing, screw support, ball screw support bearing
