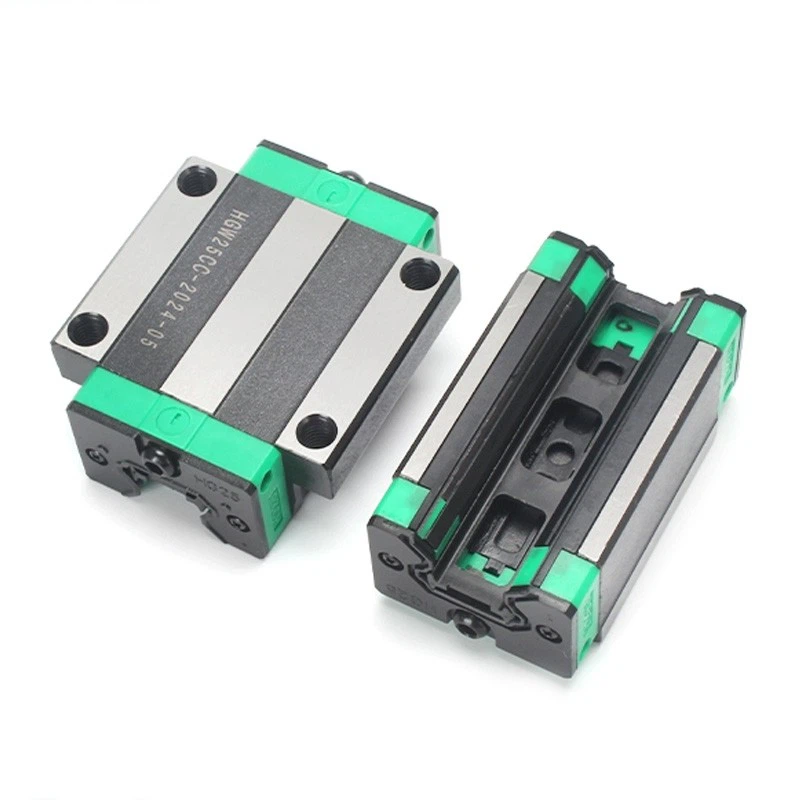

The Heavy-Duty Linear Guide is a precision guiding component designed for high-load, high-rigidity working conditions. It realizes linear motion guidance through the contact of balls or rollers between the slider and the guide rail. Adopting an integrated hardened guide rail and reinforced slider structure, combined with precision grinding technology, it can maintain high-precision motion trajectory while bearing thousands of Newtons of load, effectively absorbing shocks and vibrations during equipment operation. It is widely used in heavy-duty CNC machine tools, metallurgical equipment, port machinery, large automated production lines and other industrial fields with strict requirements on load-bearing capacity and guiding accuracy, and is a core component to ensure the stable operation of heavy machinery.
Product Advantages
We offer a variety of transmission components
Super strong load-bearing, high rigidity
Adopting roller or multi-row ball structure design, the maximum static load rating can reach 1200kN. The guide rail section adopts an optimized mechanical structure, and the radial and overturning rigidity is increased by more than 50% compared with ordinary guide rails, which can stably bear the impact load and eccentric load of heavy equipment.
Precision guidance, stable operation
The guide rail track is processed by ultra-precision grinding, with straightness error ≤0.01mm/1000mm. The slider and guide rail adopt a preload design, which eliminates gaps and improves guiding accuracy, ensuring no movement or deviation of the equipment during high-speed operation.
Wear-resistant and corrosion-resistant, long service life
The guide rail surface is chrome-plated or nitrided, which improves the corrosion resistance by more than 3 times. The slider has a built-in long-acting lubrication system and dust-proof sealing ring, which can effectively block the intrusion of iron filings, dust and other impurities, and the service life can still reach more than 20,000 hours in harsh industrial environments.
Flexible installation, strong adaptability
Supports single-rail, double-rail and multi-rail combined installation. The two ends of the guide rail can be custom-processed with positioning holes to adapt to the installation space requirements of different equipment; multiple specifications of sliders are available for selection to meet complex working conditions of mixed light and heavy loads.
Products Description
Products Description

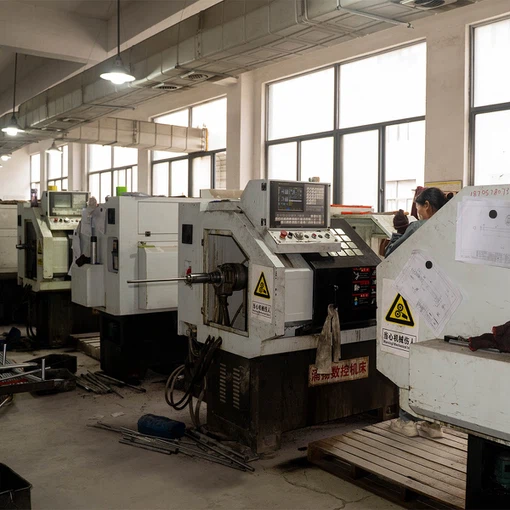

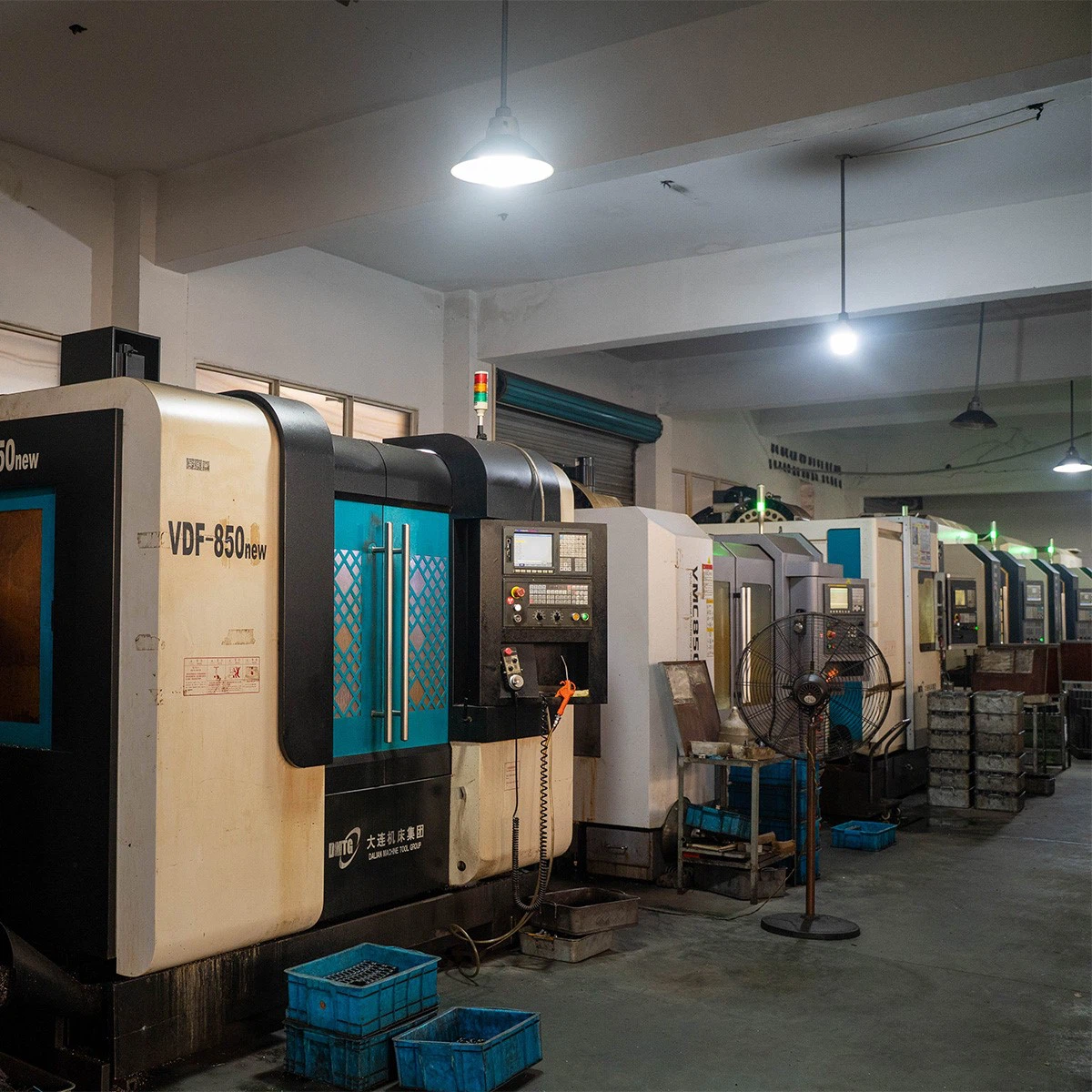

Our Factory
Installation & Maintenance
1
Installation notes
The mounting surface should be milled or ground, with flatness ≤0.03mm/m and roughness Ra≤1.6μm; high-strength bolts should be used for guide rail fixing bolts, which should be tightened according to the specified torque (recommended torque for M12 bolts is 45-55N・m). After installation, the parallelism and levelness of the guide rail should be tested.
2
Maintenance suggestions
Check the lubricating oil volume of the slider weekly, and add special lithium-based grease once a month; clean the impurities on the guide rail surface quarterly and check the integrity of the dust-proof sealing ring; in dusty environments, it is recommended to install an organ-type protective cover or a scraper dust-proof device.
Order Information
Customizable products
The Heavy-Duty Linear Guide offers customization for guide rail length, accuracy class, number of sliders, and special surface treatments (such as anti-rust coatings and wear-resistant coatings).
Free selection calculation service is provided, and suitable models are recommended according to customer parameters such as load, speed and stroke.
Product shipment
Sample delivery cycle is 7-10 working days, bulk order delivery cycle is 15-30 working days, supporting international trade terms such as EXW, FOB and CIF, and providing certificate of origin and quality inspection report.
